The Security Height Road Blockers has lift height options of 353mm & 533mm, with widths up to 5m.

Road Blockers provide higher levels of security with built in stopping power, and are used extensively for premises such as banks, embassies, bullion depots, cargo parks, ports and lorry parks.

100% duty rating – designed for continuous and frequent use. Power is supplied from a three phase 400V power supply as standard.

The Road Blocker can be interfaced to any access control systems. Traffic Light System included as standard. It is recommended that the Road Blocker’s hydraulic control cabinet is installed within 10metres of the blocker.

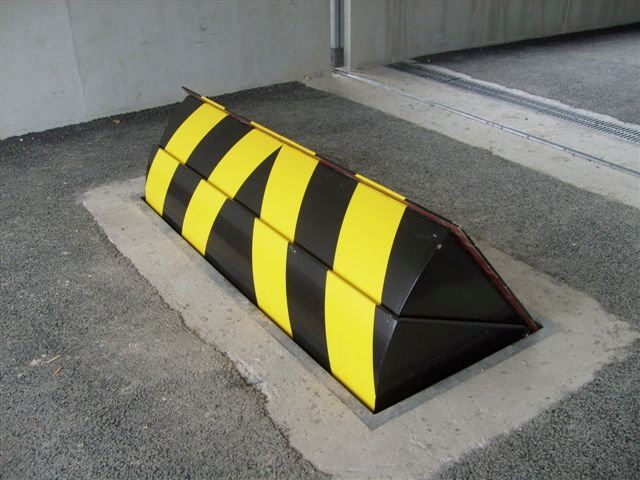

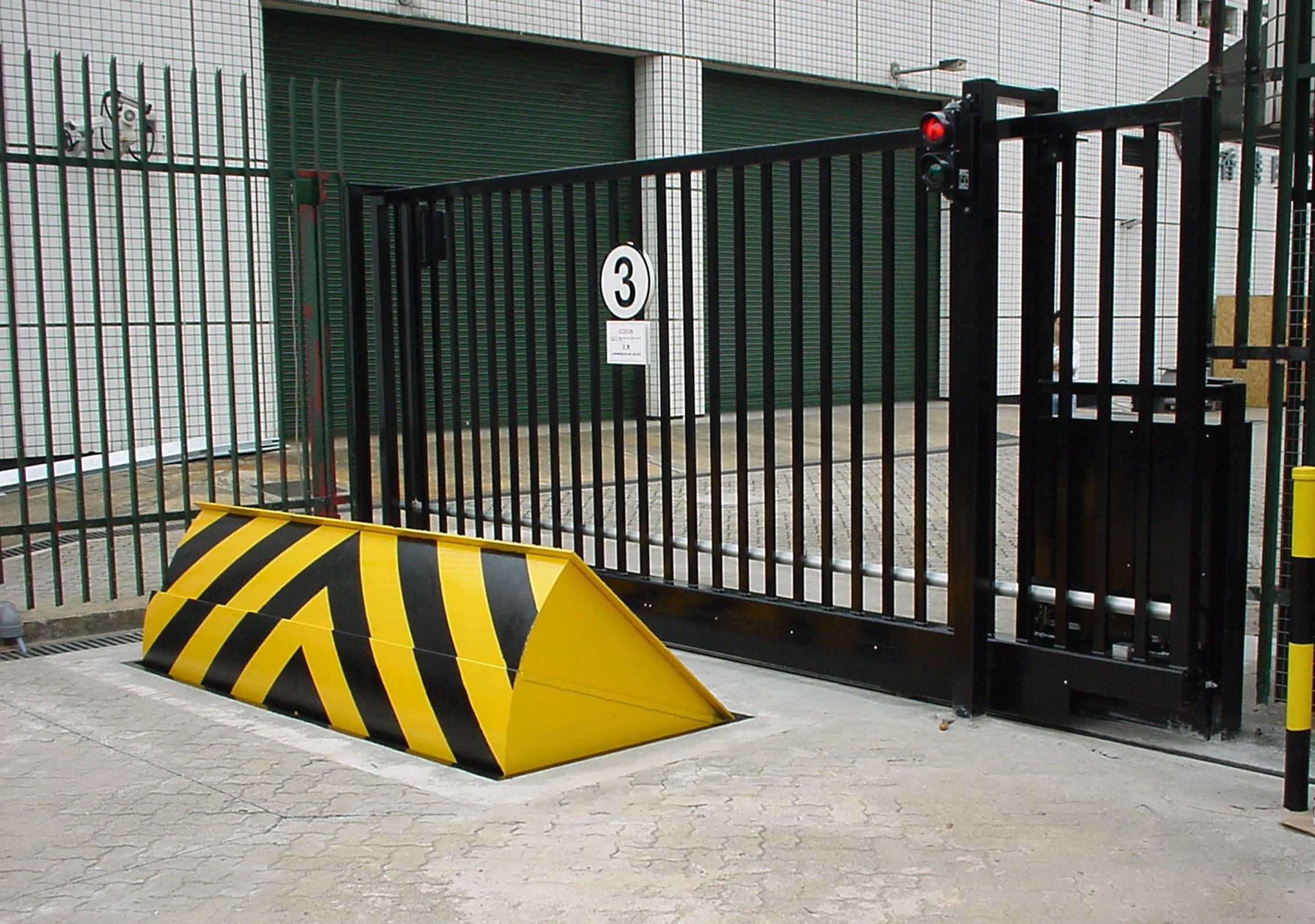

Lift Height options of 353mm & 533mm
Maximum width: 5000mm

Basic Specs
Security Height Roadblocker
Lift height 353mm or 533mm
Width: Variable up to 5000mm

More details
Construction: The blocking segment shall be constructed of heavy steel section with steel front plate and covers
Finish: Shotblasted, hot zinc sprayed (galvanised), primed and finished with a final coat of polyurethane paint. Client to advise RAL paint number. Alternative finishes available on request. Frontier Pitts Special Lifetime Paint; an anti-slip paint for road vehicles available on request.
Options: Accumulator – allows a number of operations in power failure mode, EFO(Extra Fast Operation), Manual Hand pump, High Security Cabinet, Anti-tamper alarms
Accessories Included: Industrial hydraulic pump drive unit, Motor protection, Security lock on cabinet door, Instantly Reversible, Override Switch, Switched fused supply, Mains indicator lamp, Reinforced hoses for long service life, Long life hydraulic seals
Speed of operation: 3-6 seconds *This is subject to a risk assessment to ensure the automatic equipment complies to BS EN 12453, Depending on configuration
Duty Cycle: 100% duty rating
Safety: Vehicle Detector Loops, Safety Photocells, LED Traffic light heads
Controls: The programmable logic controller (PLC) with built in safety features will accept inputs from access control systems including access card, voice, etc. Push button as supplied as standard
Accreditations: Secured by Design, BRE Global
